2 Cell Lithium battery Charger 2.1mm plug

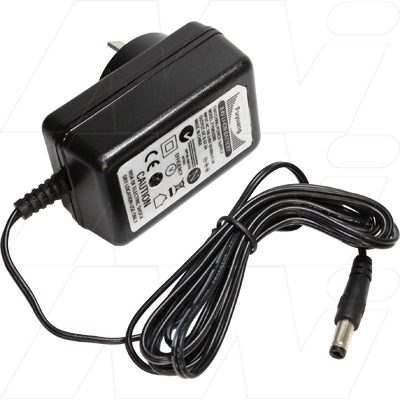

Fuyuang FY0852000S Li-ion Battery Charger 2A 2.1mm

Our Price including GST: $35.00


Product Code: FY0852000S
Qty:

Description

(Replaces older version 3P10-L1008-2.1MM)

Description 		100-240VAC wall mount LiIon 2 cell 8.4V charger output 2A + 2.1mm DC plug
Chemistry Lithium Ion (LiIon)
Voltage 8.4V
Size 2S
Width 45mm
Height 38.5mm
Length / Breadth / Depth 70mm
Data Sheet

00-240VAC input lithium ion battery charger for 2 cell 7.4V packs.

Specifications:

  • Input Voltage: 100-240VAC 50/60Hz
  • Output Voltage: 8.4VDC
  • Output Current: 2A
  • Output Connection: 2.1mm I/D, 5.5mm O/D, centre positive, 1.8m 20AWG lead.
  • LED Indication:
    • Green – Power on and No Load
    • Red – Charging Battery
    • Green – Charge complete

NOTE: For indoor use only.
