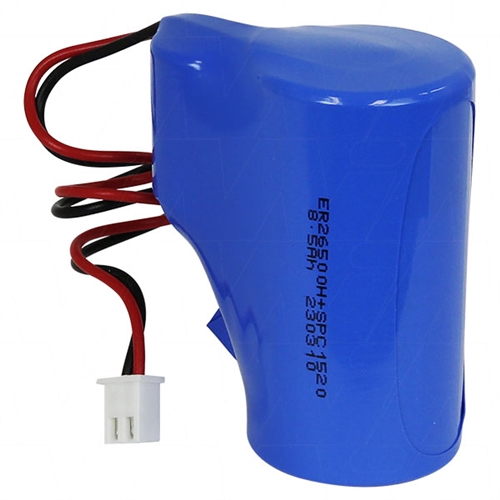

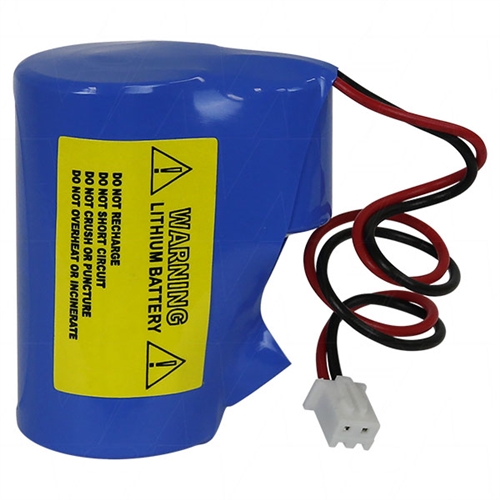

ER26500H+SPC1520 Fanso ES Storage Pack featuring ER26500H 3.6V 8.5Ah

Home > PLC and CNC >

Alternative Views:

Our Price including GST: $69.00

Product Code: ER26500H-SPC1520

Qty:

Description

Description	Fanso ES Storage Pack featuring ER26500H 3.6V 8.5Ah Lithium Thionyl Cloride Cell with SPC1520 Super Pulse Capacitor
Application	Energency Alarm Systems, Gas Metering, RFID transponders, GPS tracking, Smart Meters, IOT
Chemistry	Lithium Thionyl Chloride + SPC
Voltage	3.6V
Watt Hour	30.6Wh
Nominal Capacity	8.5Ah
Termination	JST XHP-2
Size	C
Weight	59g
Data Sheet

Fanso Lithium Thionyl Chloride (LTC) cell with a Super Pulse Capacitor (SPC) pack for use with electronic systems requiring short term / high power operation in long term stand-by fitments

The Super pulse cell capacitor (SPC) provides extremely fast high current discharge for devices where a traditional lithium thionyl chloride (LTC) cells have a delayed reaction. Combining these 2 elements allows for the LTC cell to keep the SPC fully charged, ready to power devices.

Supplied with JST XHP-2 Style connector.

Features:

High & stable operating voltage (3.6V)
Very high pulse discharge: 2.0A (1 second) minimum 2.8V
Very Small Impedance and Self Discharge
High Capacity for extended service life
Very wide temperature range: -40ºC ~ +85ºC.
Hermetic glass-to-metal sealing.
Long operating life.
Non-flammable electrolyte.
Compliant with IEC86-4 safety standard.
UL Component Recognition MH46165.
Suitable for applications including:
Gas & Utility Metering
Emergency Alarm and security devices
Vehicle E-Call systems
GPS tracking system
Military system
RFID Transponders
Automotive electronics
Real-time clock

Battery Pack features:

ER26500H Fanso Bobbin style lithium thionyl chloride cell

Fanso super pulse capacitor

JST XHP-2 style connector

Compatible With:

EVE ES-261520/W
